Cummins

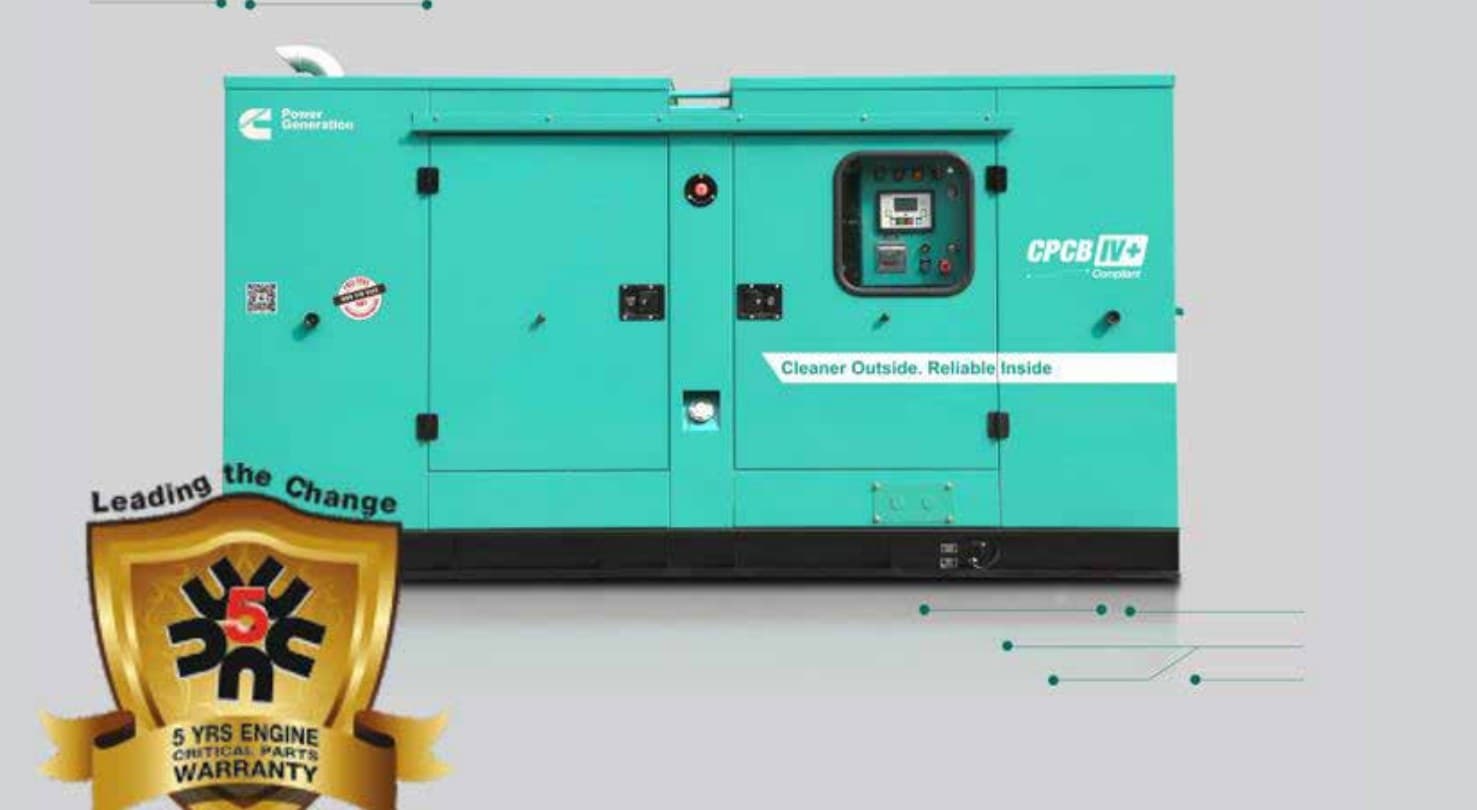

25 kVA Diesel Genset (X2.6-G1)
Cummins X2.6-G1, 41.2 hp certified
- Prime
- 25kVA
- Noise @ 1 m
- 75dB(A)
- Weight
- 1,029kg
- Fuel tank
- 102L
Specifications
Cummins 25 kVA specifications
Engine and alternator
- Engine model
- Cummins X2.6-G1, 41.2 hp certified
- Cylinders
- 3, In-line - 93x127mm bore x stroke, 2590cc, 17:1 CR, G2 governing (ISO 8528-5), 12V DC electric start
- Alternator
- STAMFORD (CGT) S0L2-M, IP23, +/-1% voltage regulation, Class H insulation, max 25% unbalanced load across phases
- Cooling
- Water-cooled (radiator, EG Compleat 50:50 coolant)
- Control panel
- Cummins PowerStart PS0602 controller: AMF, electronic governing, CAN (J1939) compatible, sync-capable, remote start/stop, Modbus RS485, sleep mode, 5-fault-code data logging, LED-backlit graphic display
Fuel
- Fuel tank capacity
- 102 L
- Fuel use @ 75% load
- Not published by the maker
- Runtime @ 75% load
- Not published by the maker
Size and build
- Dimensions (L × W × H)
- 2400 × 950 × 1400 mm
- Dry weight
- 1,029 kg
- Enclosure
- Acoustic canopy (CRCA sheet, Munsell green shade; meets MoEF/CPCB norms of <=75 dB(A) at 1m at 75% load under free-field conditions; two-point top lifting, external fuel filling)
- Noise @ 1 m
- 75 dB(A)
Compliance and warranty
- Emission norm
- CPCB IV+
- Warranty
- 5 years (engine critical parts)
- Indicative price
- Not published by the maker
Source & notes ›
Specifications per Cummins' official "Diesel Generator Set X2.6 Series" specification sheet (print code PSBU/CPCB IV+/X2.6/Rev-00/07 2023 -- a genuinely current, post-mandate CPCB IV+ certified product, unlike several older leaflets processed for other brands). Verified via bore x stroke x cylinder-count vs. stated displacement cross-check (93x127mm x 3-cyl = 2.59L, matched exactly). All ratings are Prime only -- no separate Standby rating stated. This document does not state a fuel-consumption L/hr figure anywhere (unusual vs. most brochures processed) -- left null rather than estimated. noise_db (75) is the brochure's stated design-compliance ceiling ("<=75 dBA @1m at 75% load"), not a certified per-unit test result. Dimensions/weight are the "Typical Enclosed Genset Dimensions" table figures (full canopy), not the smaller bare engine-skid dimensions also listed in the Engine Specification table.
